ROLS
RIFLE OPENING AND LOCKING STRAIGHT
-
AN INNOVATIVE AND SUPER-STRONG LOCKING SYSTEM
-
A UNIQUE COCKING DEVICE
-
10 DIFFERENT CALIBERS ALREADY AT HAND
-
NO UNINTENDED DISCHARGE
-
EASY AND SMOOTH RELOADING
-
INTERCHANGEABLE, ACCURATE BARRELS
-
ROTATING MAGAZINE
AN INNOVATIVE AND SUPER-STRONG LOCKING SYSTEM
The new, patented bolt-action system CLS® (Chapuis Locking System) offers a total locking area of 260 square millimeters, making it one of the largest and safest in the
industry. Our testing has confirmed that it can withstand pressures upward of 8,500 BARs, or 123,000 PSI.
A BARREL WITH INTEGRAL LOCKING SYSTEM
The heart of the in-line action is a locking ring consisting of seven segments—as part of the barrel. These segments seesaw on a central fulcrum to firmly grasp the bolt head
upon locking the action, or to release it upon opening.
AN INDESTRUCTIBLE LOCKING MECHANISM
The bolt lever guides the position of the blocking sleeve, which glides along the boltbody. This sleeve guarantees the positive and vault-like locking of the bolt head. When
the seven segments of the locking ring are opened or closed, they are held in position by this sleeve: once the action is pushed forward all the way home, the segments are
blocked in the locked position, preventing any accidental opening of the action.
A UNIQUE COCKING DEVICE
The ROLS® rifle has a separate cocking device, with perfectergonomics. The cocking device controls a piston that compresses the firing pin spring for firing, allowing also decompression of the spring for decocking. A hunter can then hunt safely with a chambered cartridge. In the un-cocked position, the bolt remains secured, thus preventing any unwanted bolt movement.
The cocking device is a thumb-pushed cocking lever which has been extensively tested so that decocking your rifle is the most simple, safe, and rapid as possible, even with scope and ready to fire, should you decide at the last moment not to shoot. In this case, on some of our competitors rifles, it is not always easy to slip your thumb under the scope to press the cocking device. On the ROLS® it is easy, since a slight pressure exerted with the thumb on the button located on top of the cocking lever releases it, decocking the rifle.
10 DIFFERENT CALIBERS ALREADY AT HAND
• Standard calibers for 60 cm barrels:
.243 Winchester / .30-06 / 7×64 / .270 Winchester / .308 Winchester
• Medium calibers for 60 cm barrels:
9,3×62
• Magnum calibers for 63 cm barrels:
300 Win Mag / 7 Rem Mag
• African Caliber for 65 cm barrels:
.375 Holland and Holland Magnume
NO UNINTENDED DISCHARGE
The levered bolt-handle is located just above the trigger. Cycling the action becomes intuitive and very quick.
Safety was the essential objective when developing this rifle.
As long as the bolt-handle lever is not fully pushed into a vertical position and the bolt head is not totally locked, a passive safety device prevents the firing pin from striking the primer of the cartridge. An unintended discharge is thus made impossible.
EASY AND SMOOTH RELOADING
Our goal was to provide an in-line feeding system, so as to avoid any feeding problems.
With this high capacity rotating magazine (4 rounds + 1 for standard calibers, 3+1 for magnum calibers) the cartridges are lined up with the chamber.
Reloading is made smoother and easier. We also invented a magazine lowering device, controlled by the bolt. During the forward movement of the bolt shaft, the magazine lowers into the receiver, removing any impediment of the cartridge between magazine and chamber.
INTERCHANGEABLE, ACCURATE BARRELS
The barrel is held in a sleeve, resulting in perfect headspace when the two are assembled. This sleeve has a recoil lug machined with a high degree of precision, less than 1/100 of a millimeter, locking on a steel-made bedding carried by the receiver.
This precision allows the perfect changing of barrels with exceptional accuracy on the first shot. Changing the barrels is made by screwing/unscrewing the screw under the receiver, with the provided wrench.
ROTATING MAGAZINE
The development of the detachable, rotating magazine of the ROLS® took many months and a patent is pending.
This magazine is located over the trigger guard and trigger, keeping the overall length of the rifle to a minimum. It can beremoved in a simple two step procedure.
First, a release button is pressed which opens the trigger floorplate. In a second step, the magazine is ejected. This two-step device is intentional, so as to prevent any unintended ejection of the magazine. But if needed, a quick change of magazine is possible by maintaining pressure on the release button; the floorplate opens and the magazine is ejected simultaneously. You can then reload.
For rapid reloading, especially on driven big game hunts when many shots are fired, it is also possible to reload the magazine from the top of the receiver. For safety, when the trigger floorplate opens, the rifle is automatically decocked.
TYPE OF FINISH
-
ROLS PRO HUNTER

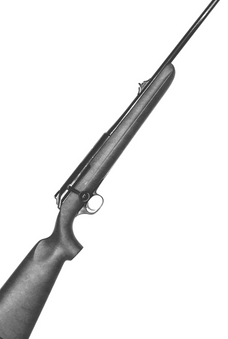

ROLS® PRO HUNTER
- New one-piece stock with a unique design –
- Made of Techno Wood compressed wood Recyclable covered with a new coating offering an optimal anti-scratch resistance.
- Fortal 7075 alloy frame integrated in the stock.
- Delivered in a Chapuis Armes Thermoformed case
-
PERFORMANCE

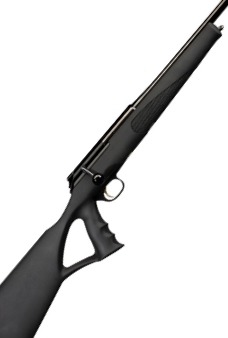

ROLS Performance
New one piece stock for right-handed hunters. The ergonomics of its grip reduces the tensions in the hand holding the rifle. The perfect ergonomics of the stock will relax the shooter, enhancing stability, allowing a perfect control of the shot. The optimal design of the thumbhole allows a very fast repositionning of the hand between each shot, without loosing the line of sight, thus allowing quick reloads in a driven hunt. The finger rests on the front of the grip and the thumb rest on the left side of the stock allow a confortable handling of the rifle. The natural material of the stock: « Technosoft », is higly resistant, has a synthetic « Soft Touch » coating for a betterhold, whatever the weather conditions.
Technical features :
Receiver made of Fortal 7075 alloy, inserted into the stock. One- piece stock with thumbhole, made of a natural material : « Technosoft ». Recoil pad. Lever with black synthetic handle. Rotating magazine. Interchangeable barrel. Barrelwith triangle-shaped, patented luminescent open (iron) rear sight, adjustable front sight. On request, the barrel can be sold without open (iron) sights.Swivel studs and sling swivels.
- Available in left-handed version
-
CLASSIC

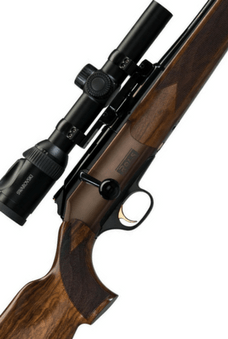

ROLS® CLASSIC BRONZE & ROLS® CLASSIC NOIR
- Features: action machined out of Fortal 7075 alloy, with ROLS engravings, bronze or black colored surface treatment – Grade 3 walnut butt with pistol grip,
- German cheek piece, smooth and oil-finished tulip- shaped front-piece –
- Recoil pad.
- High capacity, rotating magazine 4+ 1 for standard calibers and 3+ 1 in Magnum calibers –
- Interchangeable barrels with triangle-shaped, luminescent rear sights and adjustable front sight.
Engineered so as to be the extension of your own arm, this new straight pull action ROLS® is fit for driven hunts as well as for stalking or mountain hunting. Suited to any hunting situation, thanks to its modular conception, you can change barrels with a simple screwdriver. 10 calibers are listed and available. Thanks to its light weight, its perfect balance and the smoothness of its action, quick follow-on shots are easy.
- Available in left-handed version
-
ELEGANCE

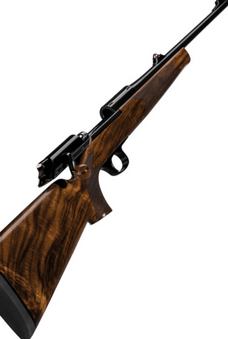

ROLS® ELEGANCE
- New black carcass steel casing mounted in new Lacrosse 1 piece
- New butt rifle type made in Walnut selected 3 Stars – Oiled pumice
- Plate of layer anti retreat – ATS arming lever with ball in Noyer
- Rotary charger great capacity 4 1 in Standard gauge & 3 1 Gauges Magnum
- Delivered out of case ABS Chapuis Armes
- Available in left-handed version
Conceived to be the direct prolongation of your arm, this new linear rifle ROLS® is intended as well for huntings in beaten, as with huntings of approach or mountain. At ease on all the grounds thanks to its extreme modularity, you will be able in to change the guns of your rifle which are available right now in more than 10 gauges. Thanks to its extreme lightness, a perfect balance and a very great fluidity of the mechanism, the shootings can be connected at a constant rate.
-
DELUXE

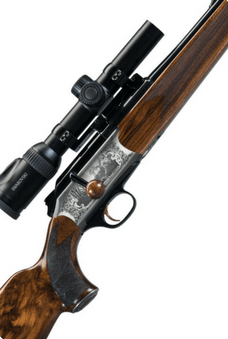

ROLS DELUXE
Presented with a higher degree of finish, this model will please the most demanding hunters. On the sides of the receiver the finest and most elegant engravings drawn by one of our masters engravers are to be found, showing hunting scenes of a stunning realism. They offer elegant, selected, grade 4 walnut stocks. The stock and fore end are sanded and oil finished, so as to show the exceptional patterns of these century old wood pieces.
Technical features :
Solid receiver machined from a Fortal 7075 alloy billet anodized in grey color. Laser-made engravings with acanthus leaves, hunting scenes on either sides of the receiver. Grade 4 walnut pistol grip stock with Monte-Carlo hump, tulip-shaped fore- end tip, sanded and oil finished. New take-down pistol grip cap with its multi-purpose tool. Recoil pad. Bolt lever with walnut round handle. Rotary, detachable magazine box (see available calibers P.15). Opens sights with height-adjustable front bead, patented luminescent, triangle shaped rear sight. On request, barrelsare available without open sights. Detachable sling swivels.
- Available in left-handed version
-
PERFORMANCE WOOD

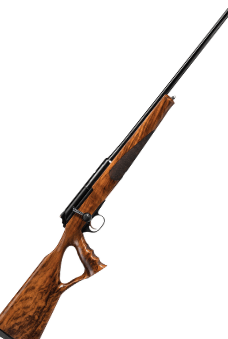

ROLS® PERFORMANCE WOOD
New One piece stock with thumbhole design for right hand shooter made out of a 3 Stars walnut.
Oil finished and Rubber recoil pad – Pistol grip with our new take-down cap and its multi purpose tool.
Receiver made of Fortal 7075 alloy inserted into the stock – Blued alloy blot lever with engraved handle.
Round contour barrel with no open sight and M14x100 tread deliver with its protect ring.
New Chapuis Armes Rapid sling swivels fitted onto the stock and delivered with the rifle.
Delivered in Chapuis Armes ABS transport case
-
-
CARBON

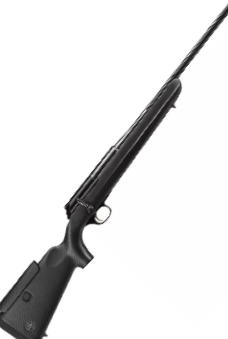

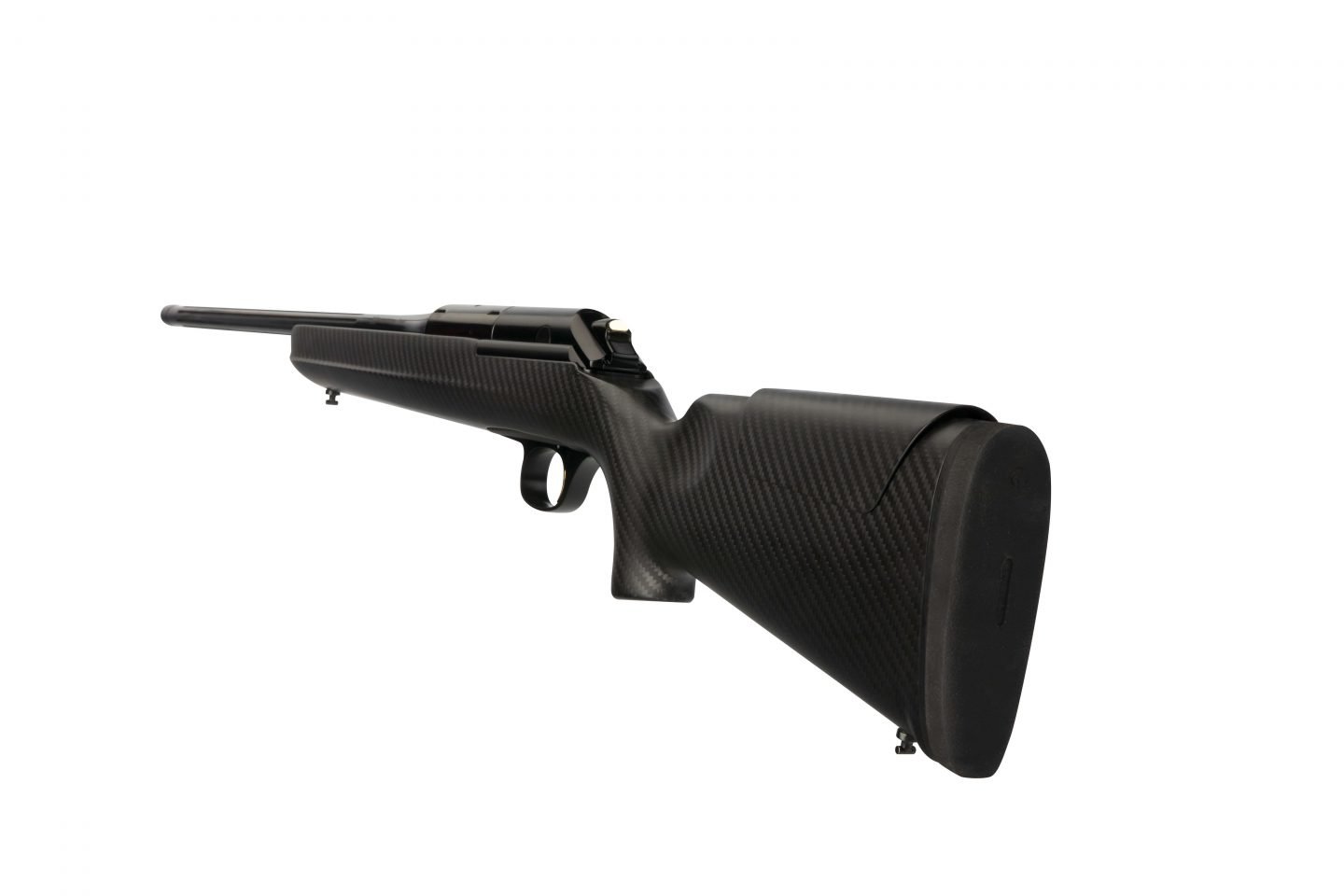

ROLS® Carbon

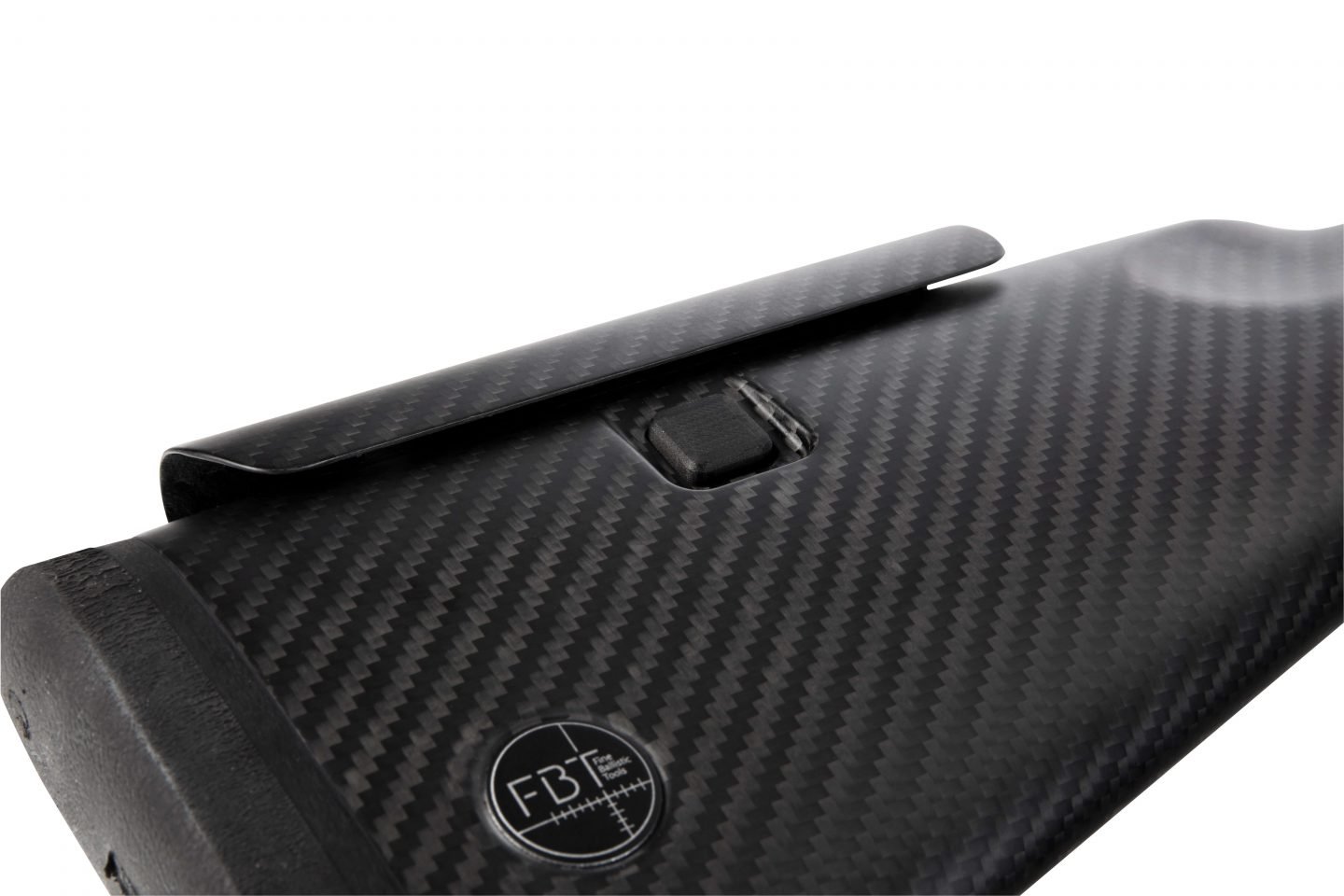

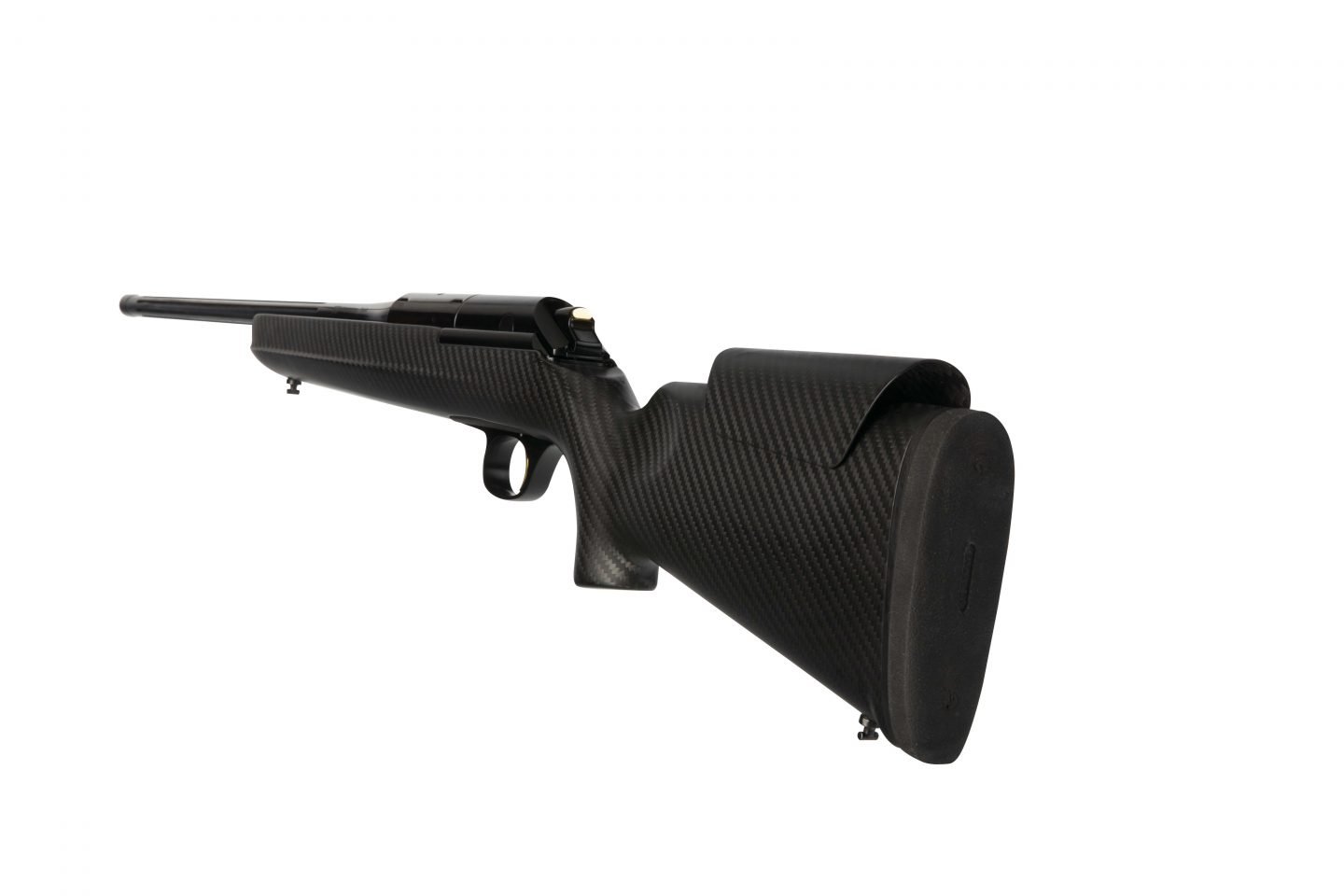

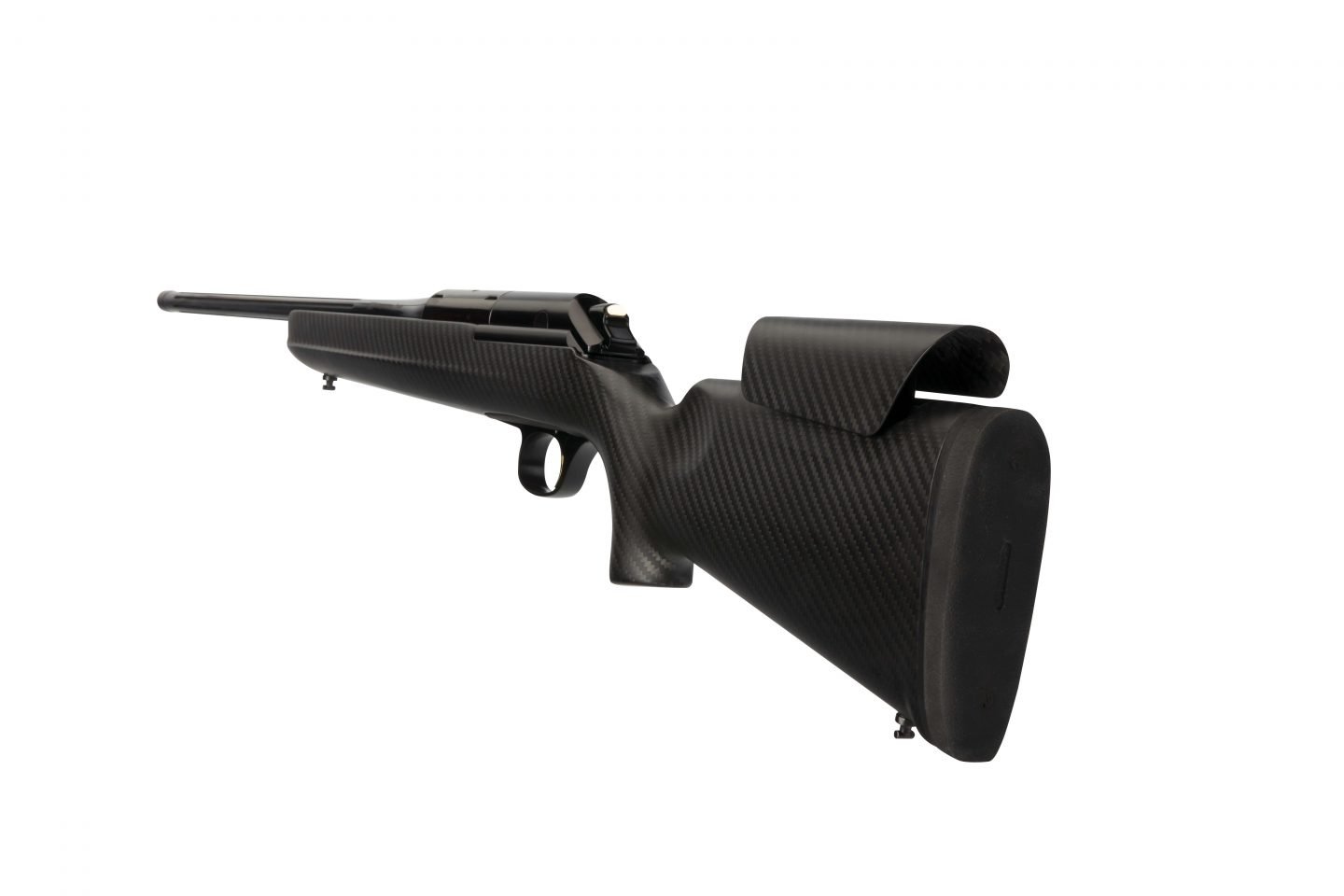

New carbon stock for right hand shooter made out of 100% carbon fibers assembled in Austria by FBT. Height adjustable cheek piece from a side push button – Fitted with a Decelerator black rubber pad. Receiver made of Fortal 7075 alloy inserted into the stock – Blued alloy blot lever with engraved handle. Fluted barrel with no open sight and M14x100 tread deliver with its protect ring.
New Chapuis Armes Rapid sling swivels fitted onto the stock and delivered with the rifle.
Delivered in Chapuis Armes ABS transport case
-
-
ARTISAN

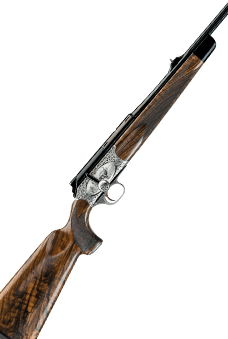

ROLS® ARTISAN
- Features: action machined out of Fortal 7075 alloy, with ROLS engravings, bronze colored surface treatment – Grade 3 walnut butt with pistol grip,
- German cheek piece, smooth and oil-finished tulip- shaped front-piece –
- Recoil pad.
- High capacity, rotating magazine 4+ 1 for standard calibers and 3+ 1 in Magnum calibers –
- Interchangeable barrels with triangle-shaped, luminescent rear sights and adjustable front sight.
Engineered so as to be the extension of your own arm, this new straight pull action ROLS® is fit for driven hunts as well as for stalking or mountain hunting. Suited to any hunting situation, thanks to its modular conception, you can change barrels with a simple screwdriver. 10 calibers are listed and available. Thanks to its light weight, its perfect balance and the smoothness of its action, quick follow-on shots are easy.
- Available in left-handed version
